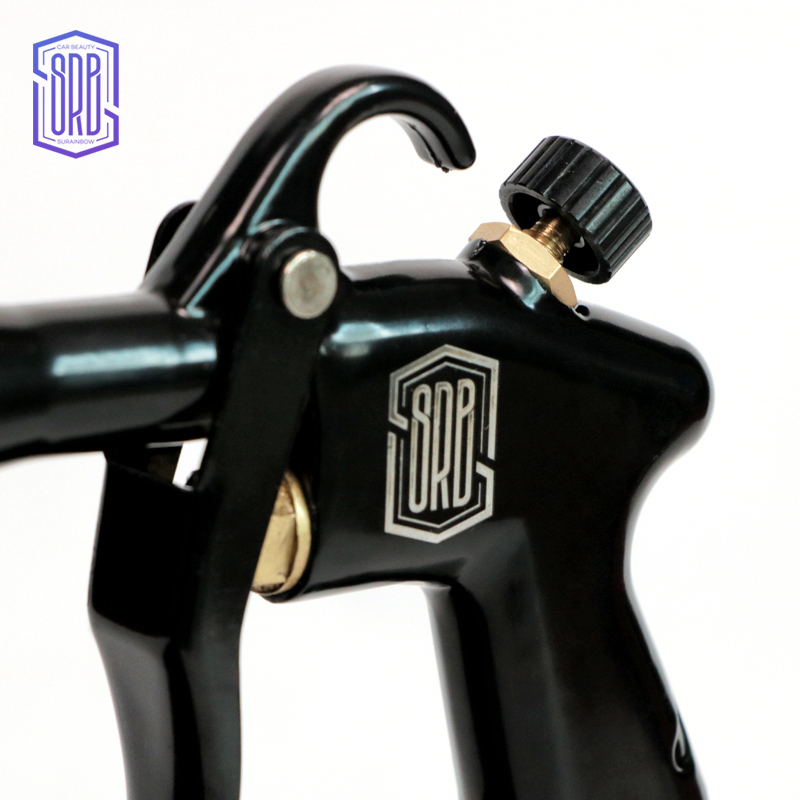

Tornado Bearing Side Seam Cleaning Gun T-685

No.T-685
OEM car maintenance tool bearing needle mouth door seam cleaning gun cleaning spray gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685
  • Tornado Bearing Side Seam Cleaning Gun T-685

Description

Tornado Bearing Side Seam Cleaning Gun T-685
Quick Details
Type:
Other
Place of Origin:
Guangdong, China
Brand Name:
SURAINBOW
Model Number:
T-685
Product name:
Tornado Interior Cleaning Bearing Gun
Model:
T-685
Color:
Black
Size:
34*13.5*26 cm
Weight:
0.96KG
Material:
ABS + Aluminum Alloy
Keyword:
Interior cleaning spray gun
MOQ:
10Pcs
Package:
10 piece into a box
Features:
Strong cleaning power, high construction efficiency



Product Overview

This is a compact, air-powered gun built for bearing seats, door and body seams, and the narrow interior joints a brush cannot reach. Cleaning solution from the canister meets the air stream at the nozzle, so a pass loosens the dirt and carries it out of the gap instead of pushing it further in.

The tornado effect does the work rather than high pressure. A short burst lifts dust, polish residue and tired dressing out of a seam, and the same burst leaves the joint dry enough for tape, trim dressing or protection to sit properly.

In a full detail it runs after the wash and degrease stage and before anything protective goes on. Sealants and coatings behave far better on a genuinely dry seam, and a hinge pocket or a tailgate channel is exactly where that is hardest to achieve by hand.

Detailing studios, reconditioning operations and distributors keep it with the cleaning tools for car interiors on the bench, and it earns its keep around wheel arches and door lines as much as inside the cabin.

As one of the car cleaning products manufacturers in Guangzhou, we build this gun alongside the liquids that go through it, so questions about dilution, nozzle choice or which cleaner suits a given joint come back to the same team.

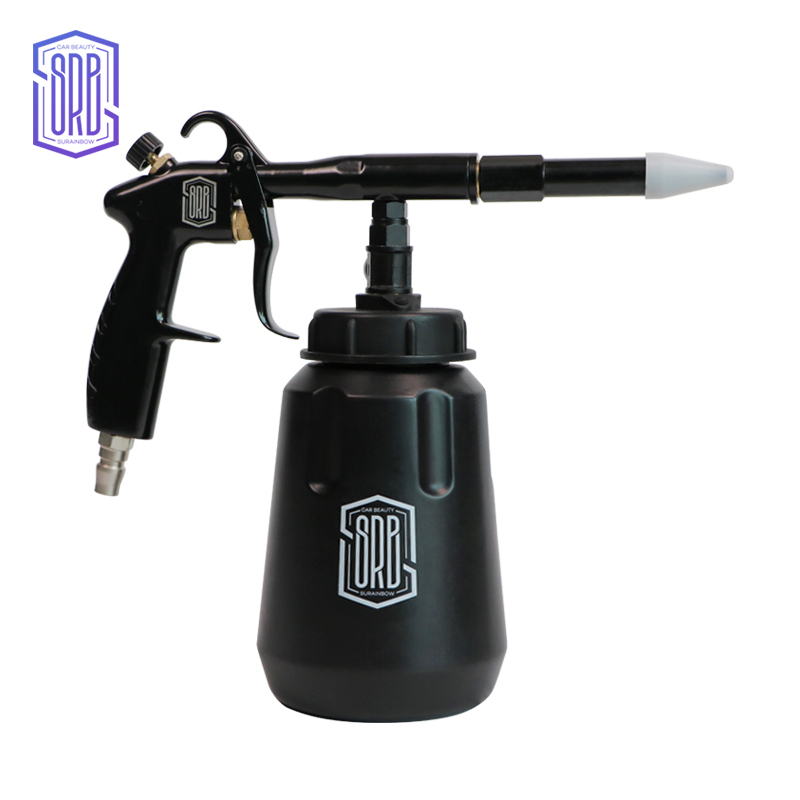

Black car wash foam spray gun with reservoir bottle

Build & Handling

ABS forms the shell and the handle, with aluminium alloy at the nozzle end and the air connection. The plastic keeps the gun light in the hand; the metal sits where solvent, pressure and thread wear actually happen.

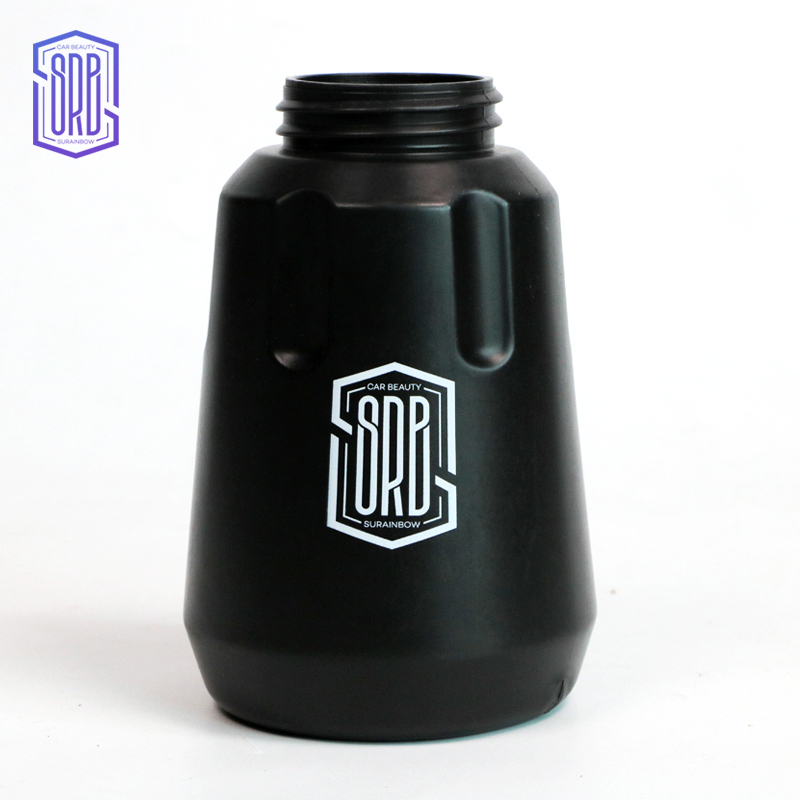

Solution is held in a black detachable canister that unscrews from the body, so it can be filled, emptied and rinsed without taking the gun off the air line.

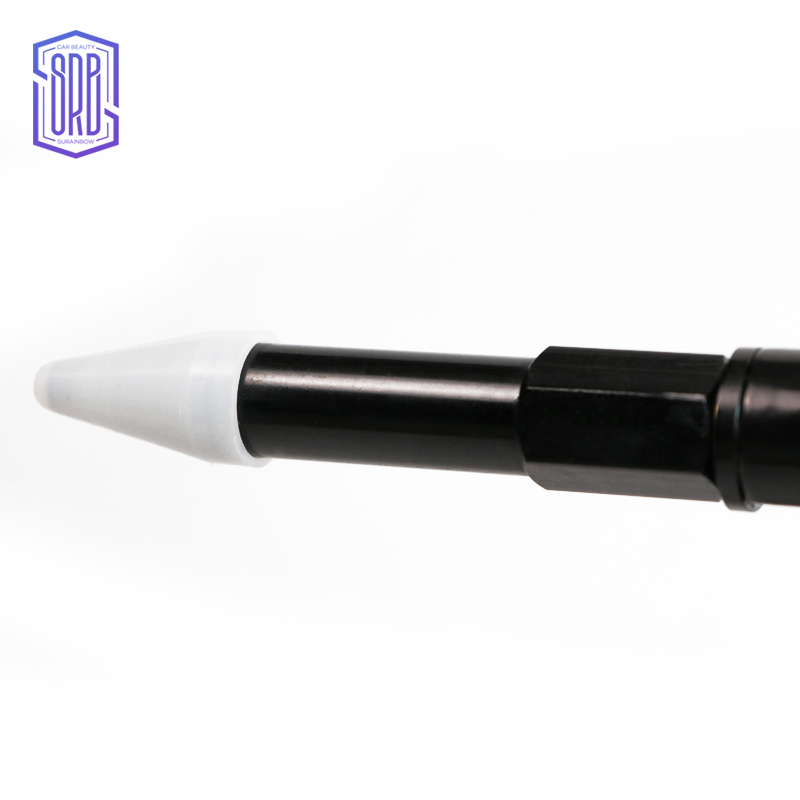

The nozzle is a tapered tip that concentrates air and liquid into one narrow stream. That is what makes the tool effective in a tight seam and pointless across a whole panel; among air-powered cleaning tools it is a detail gun, not a spray gun for coverage.

Weight sits back toward the grip rather than out at the tip, which keeps the nozzle steady when you work along the top of a door or reach up under a dash.

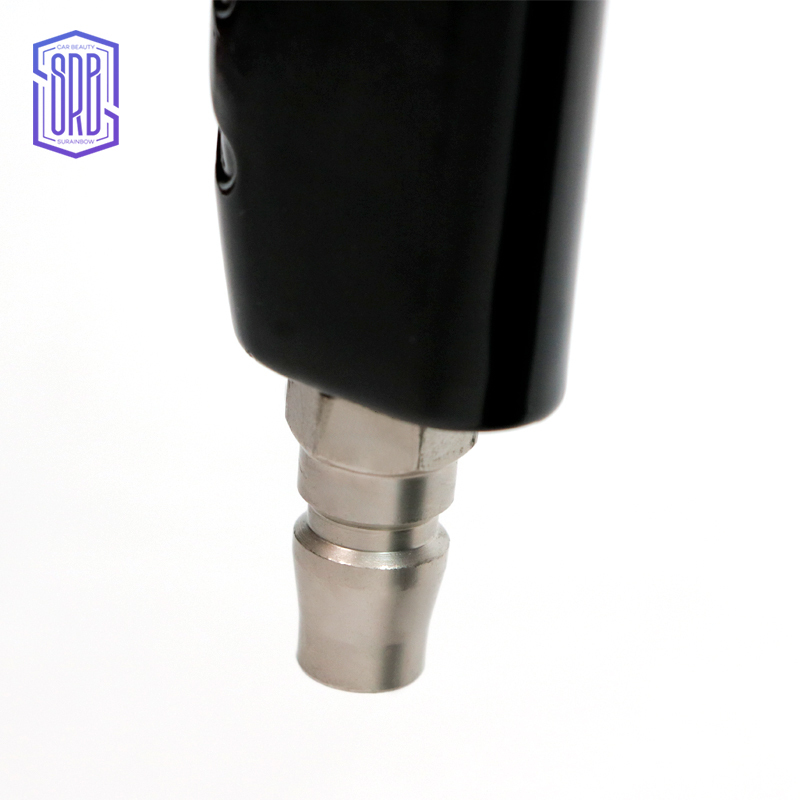

The air connection is a metal fitting at the base of the grip. Check it against the hose end on your own line and add an adapter if your workshop runs a different pattern.

Bearing & Side Seam Work

  • Door seams and hinge pockets: grit and old grease gather where the door meets the pillar, and a burst along the gap clears them before the door is adjusted or dressed.
  • Bearing seats and hub faces: brake dust and dried grease come out of the bearing seat before a hub goes back on, so the mating face is genuinely clean.
  • Tailgate, bonnet and fuel-flap channels: the water traps that stay damp long after a wash, cleared and dried in a single pass.
  • Badge, trim and moulding gaps: polish residue that a towel only smears across the panel is lifted out of the gap instead.
  • Interior crevices: seat rails, console seams and the hinge area behind a folding seat back, where a vacuum cannot reach and a towel will not fit.
  • Engine bay channels: short bursts around bolt heads and seam sealer with the electrics shielded, for grime that sits where a brush cannot follow.
  • Pre-dressing and pre-coating work: the last step before trim dressing or protection, when a dry seam is what keeps the finish from lifting at the edge.
  • Range fit: it belongs with the cleaning tools for car detailing that shops reorder most, because it is small, hand-held and used on almost every vehicle on the line.

Specifications

PropertyValue
ModelT-685
Product nameTornado bearing side seam cleaning gun (also listed as Tornado Interior Cleaning Bearing Gun)
BrandSURAINBOW
Tool typeAir-powered interior cleaning spray gun
MaterialABS + aluminium alloy
ColourBlack
Size34 × 13.5 × 26 cm
Weight0.96 kg
DriveCompressed shop air; no electrical supply
Main useBearing seats, door and body seams, interior crevices
Place of originGuangdong, China

Operating Steps

  1. Connect to a clean, dry air line. Water or oil carried over from the compressor ends up on the panel, so drain the trap first and check the fitting against your hose, as you would with any of your pneumatic cleaning tools.
  2. Fill the canister with cleaner mixed to the dilution on its own label and screw it on firmly. A part-filled canister is easier to control than a full one when you are working overhead.
  3. Test the pattern on a waste area. A short trigger pull shows how much liquid is being carried; set it so the seam is flushed rather than flooded.
  4. Work along the joint in short bursts with the nozzle held off the surface, letting the air push loosened dirt out of the gap. Keep the gun moving — holding it in one place only wets the area.
  5. Finish with a dry pass so the joint is ready for dressing, tape or coating. Seams that are still damp are where trim dressing starts to lift a week later.

Care & Maintenance

  • Flush after every job: rinse the canister, draw clean water through the nozzle, then blow air through until the tip is dry. Leftover degreaser dries into a film that blocks the stream.
  • Empty the canister before storage. Solution left standing inside works on the seal and can leave sediment that spits onto the next panel.
  • Clear a blocked tip by soaking it in clean water and blowing it through. Poking the narrow bore with wire can deform it and change the spray pattern for good.
  • Check the air fitting and the connector at the base of the grip for looseness. A small leak there costs the focused stream the gun was bought for.
  • Store pneumatic cleaning tools dry and upright. A bucket of mixed tools is where nozzles get bent and canister threads get cross-threaded.
  • Drain the compressor and line regularly, especially in humid shops. Moisture is the usual reason a tornado gun starts spitting water across a freshly cleaned panel.

Ordering & Delivery

  1. Confirm the model and quantity. The minimum order is 10 pcs, packed 10 to a box, and one shipment can carry the gun together with cleaners and dressings — the practical reason buyers work with car cleaning products manufacturers rather than splitting tools and liquids across two suppliers.
  2. Agree the sample and the packaging before bulk production. Your sales contact will confirm sample availability and any applicable charges, and label artwork, carton marks and barcode data are approved before the run starts.
  3. Confirm price, lead time and shipping in writing. In stock and fast shipping — the dispatch date still depends on quantity and destination, so ask for it with the offer.
  4. Settle the balance and take the documents with the shipment. Payment method, currency and balance timing are confirmed in the offer; the commercial invoice and packing list travel with the goods, and safety or market-specific test paperwork can be requested with the order — we will confirm what is available for this model and the destination you are selling into.
  5. Keep the batch reference for after-sales. The carton label or batch number from the delivery is what a claim is traced against, so if a unit arrives damaged or behaves differently from the approved sample, send photos and that reference.

Scale & Supply Capability

SURAINBOW is run by Guangzhou Liangdian Automotive Supplies Co., Ltd., a factory-trade operation set up in Guangzhou in 2010 and now 50 people strong. Sixteen years in car care have given us a one-stop supply position: our own SURAINBOW lines are held in stock for fast shipping, and an associate factory with modern production equipment and an established quality management system keeps replenishment moving. We take OEM and ODM work and our R&D team develops to your specification. Buyers in the Middle East, the United States, Southeast Asia, Europe, the UK, Russia, Africa and Australia already order from us.

FAQ

What air supply does this gun need?

It runs on compressed shop air and uses no electricity, so there is no voltage or power rating to match. The working pressure and air consumption for this model are most reliably confirmed against your own compressor — send your line details to your sales contact and they will tell you what to run it at.

Which liquids can I run through it?

Water-based interior cleaners and degreasers, mixed to the dilution on their own label, are the everyday choice for seam and bearing work. Because we are car cleaning products manufacturers that also make the tools, we can point you to the right cleaner for a given joint; thick dressings and coatings are not what the canister is for.

Will it damage paint, seals or trim?

Used as intended — short bursts, nozzle held away from the surface, gun kept moving — it works on the seam rather than the panel around it. The risk is holding the trigger in one spot and letting solution pool against a seal, so treat it as a detail tool rather than a pressure washer.

How does it differ from the other tornado guns you supply?

This one is set up for bearing seats and side seams, with the compact body that suits door lines and interior crevices. The range also includes long-tube models for engine-bay reach and a 2-in-1 version that extracts as it blows; among the cleaning tools for car interiors we ship, this is the one technicians reach for when the job is a narrow joint rather than a large cavity.

Can it be supplied with our own label and packaging?

Yes — OEM and private-label work is part of what we do, and for a tool like this the scope sits mostly in labels, cartons and shipping marks rather than in the gun itself. Share your artwork, barcode data and destination market with your sales contact so the version you approve is the version that goes into production.
